APlusLift AP-12SR Overhead Two-Post Lift – 12,000 LB Capacity

Professional-Grade Performance with Industry-Leading Warranty

The APlusLift AP-12SR is a 12,000 lb overhead two-post vehicle lift engineered for professional workshops that demand strength, safety, and long-term reliability. Built with premium materials and precision manufacturing, this lift features a single-point safety lock release, CE-certified construction, and an industry-leading 3-year parts warranty.

Industry-Leading Warranty

• 3-Year Warranty on All Parts (36 months)

• A $499 value, included at no extra cost

• Full availability of replacement and optional parts

Key Features

• 12,000 LB Lifting Capacity
  Suitable for cars, SUVs, pickup trucks, and light-duty commercial vehicles.

• Single-Point Safety Lock Release System
  Simple, safe operation with centralized lock control.

• Truck Adapter Sets Included
  Two sets of 3″ and 6″ height adapters, allowing up to 6′7″ maximum lift height with adapters installed.

• CE-Certified Lift Structure & Hydraulic System
  Tested to 115% dynamic load and 150% static load capacity for superior safety margins.

• All Robot-Welded Steel Construction
  Finished with a durable powder-coated surface for long-term corrosion resistance.

• Direct-Drive Hydraulic System
  Dual hydraulic cylinders provide smooth, balanced, and reliable lifting.

Shipping Information

• Free shipping to the lower 48 states

• Forklift (or equivalent) required on-site for delivery

• No liftgate service available

• Free pickup available at nearby freight terminals

• Forklift rental is not recommended and not reimbursed

• Remote or limited-access locations may incur additional costs (see shipping policy)

Technical Specifications

Model Comparison

Model: AP-12SR (This Model)
Style: Overhead
Lock Release: Single-Point Release
Warranty: 3 Years (36 Months)
Lifting Capacity: 12,000 lbs

Overall Height: 165″
Overall Width: 149″
Drive-Through Width: 109″
Column-to-Column Width: 123″

Maximum Lift Height (with adapters): 79″
Maximum Lift Height (without adapters): 70″
Minimum Pad Height: 4″

Motor: 220V Single Phase, 3HP Inverter Motor (30A breaker recommended)
Hydraulic Oil: 3–5 gallons AW32 / AW46 (not included)
Time to Full Rise: 75 seconds

Shipping Weight: 2,500 lbs
Shipping Package Size: 117″ L × 22″ W × 50″ H

Construction & Materials

• Column Steel Thickness: 1/4″

• Carriage Steel Thickness: 1/4″

• Carriage Yoke Thickness: 3/4″

• Arm Steel Thickness: 5/16″

• Base Plate Thickness: 13/16″

• Carriage Material: Q355 (ASTM A572), stronger than standard Q235 steel

Arm Assembly

• Symmetrical Arm Design

• Front Arms: Straight, 3-stage reach from 37½″ to 72 3/16″

• Rear Arms: Straight, 3-stage reach from 37½″ to 72 3/16″

Included Components

• Four adjustable screw lift pads

• Two sets of truck adapters (3″ and 6″ tall)

• Ten anchor bolts

• Ten shims

• Complete hardware kit

Concrete & Installation Requirements

• Concrete Thickness: Minimum 6″ at 3,500 PSI, reinforced with steel or fiberglass

• 4″ concrete permitted only for vehicles under 9,000 lbs

• Professional installation strongly recommended

Advanced Safety & Performance Features

• Single-point safety lock release

• Automatic arm lock restraints

• Built-in hydraulic relief valve to prevent overload

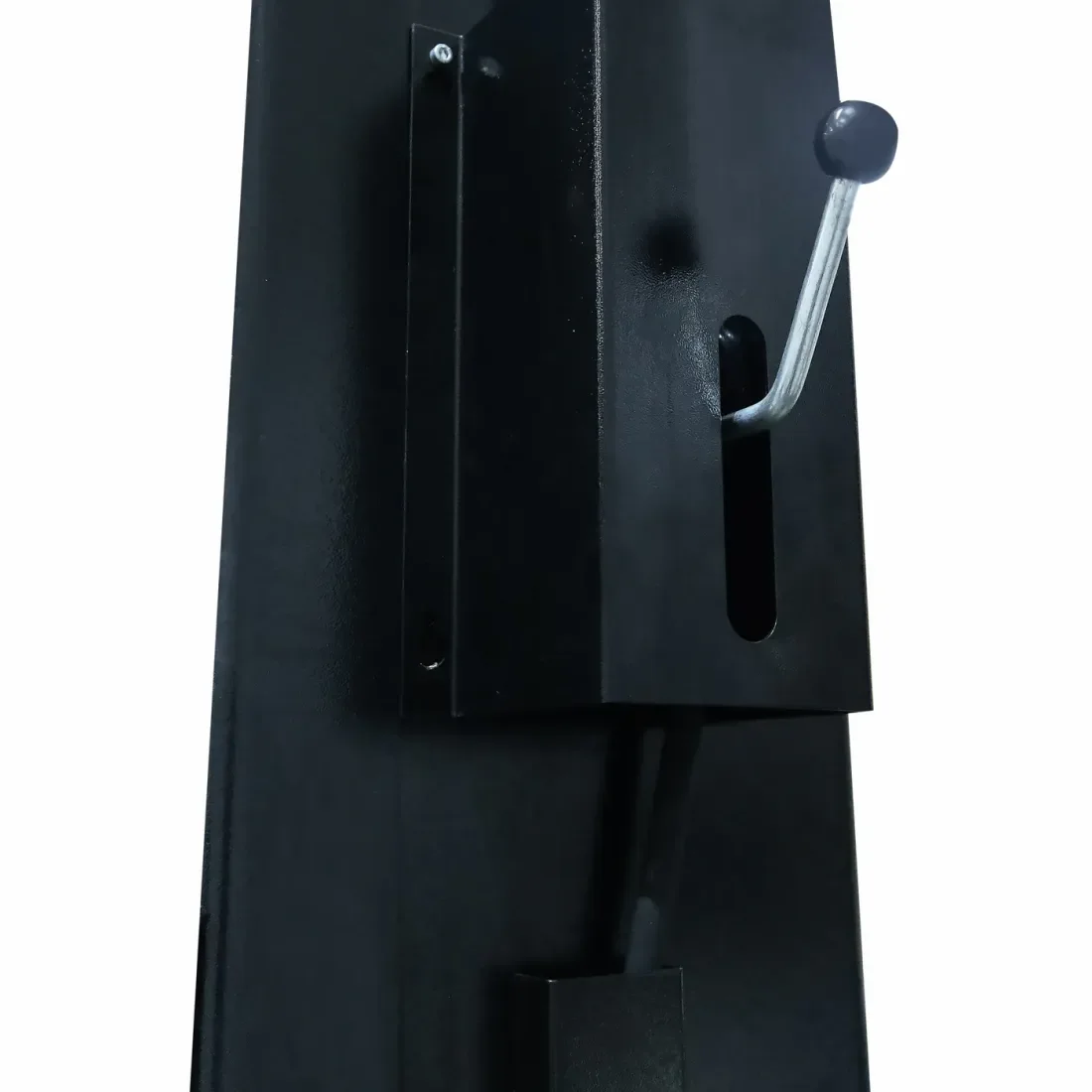

• Manual lowering control lever

• Door guard rubber protection

• Upper-limit safety switch for cylinder stroke protection

• Heavy-duty 3/8″ synchronization cables with 4 5/16″ pulleys

• Ultra-high molecular, self-lubricating nylon sliders for smooth carriage movement

• Double seal rings protecting hydraulic PU materials

Built for Professional Use

The APlusLift AP-12SR delivers exceptional strength, precision, and safety, making it an ideal choice for commercial repair shops and serious automotive professionals who require dependable lifting performance day after day.
